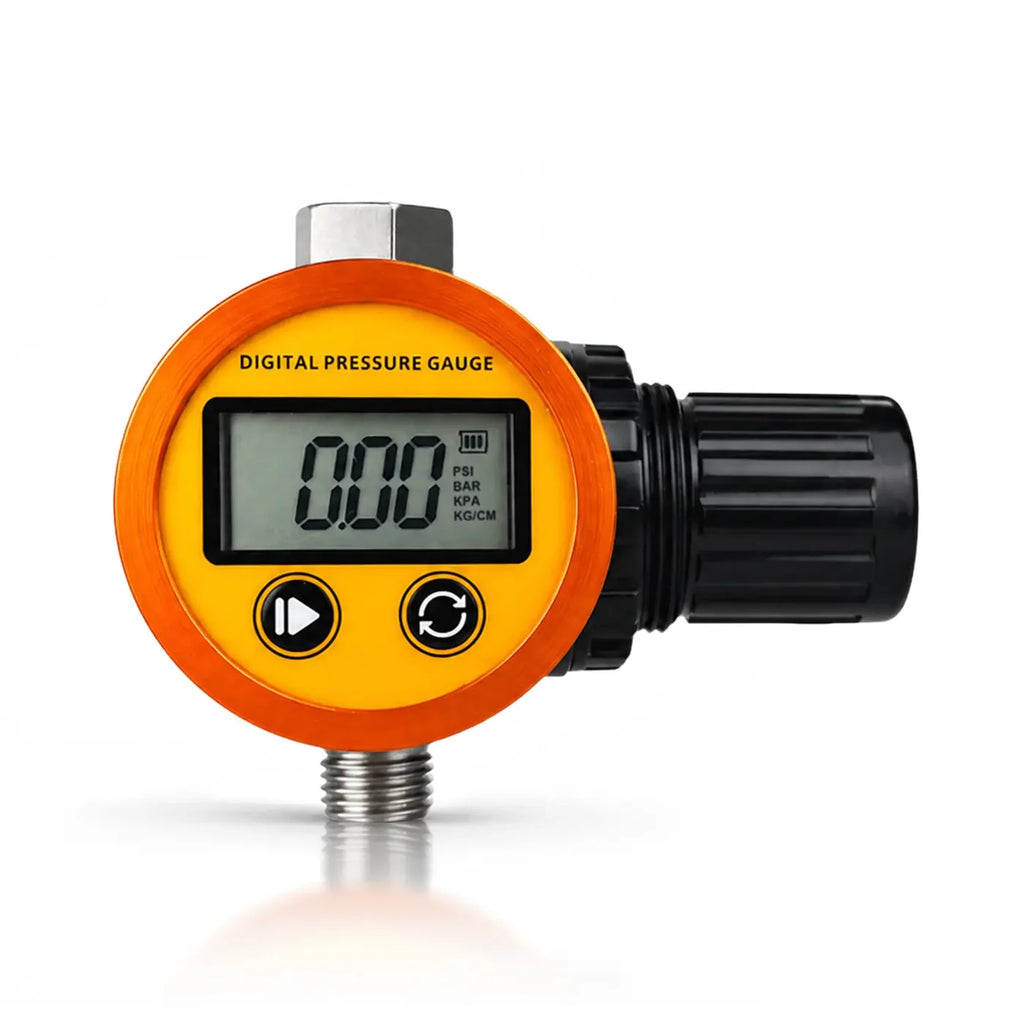

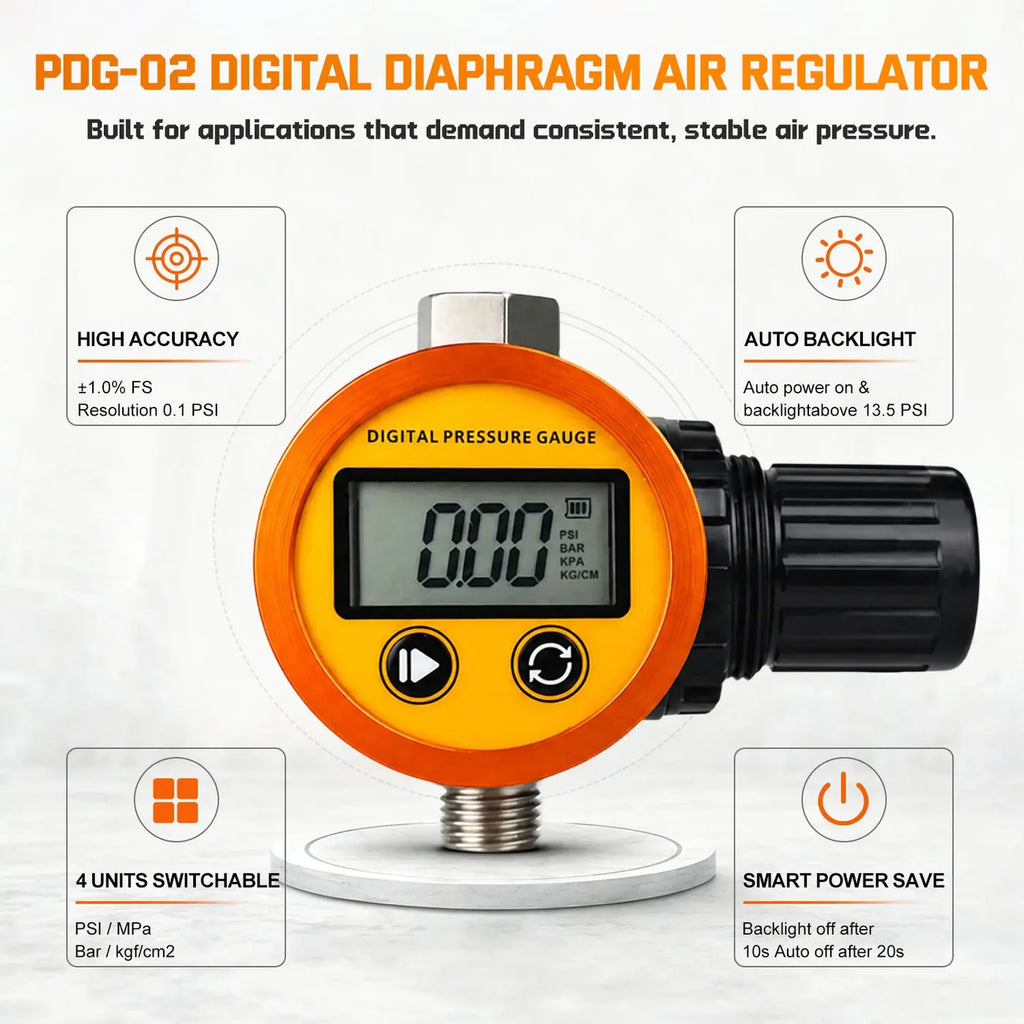

🛠️ PORPHIS PDG-02 Digital Diaphragm Air Regulator
Quick Summary: Premium in-line digital diaphragm air regulator engineered specifically to deliver rock-steady, ripple-free pressure stability under heavy workshop conditions. Unlike standard piston-style adjusters, the PDG-02 uses an ultra-sensitive flexible internal diaphragm that actively counteracts unstable shop air and inline fluctuations. This ensures perfectly consistent atomization and absolute pattern control over long production passes.

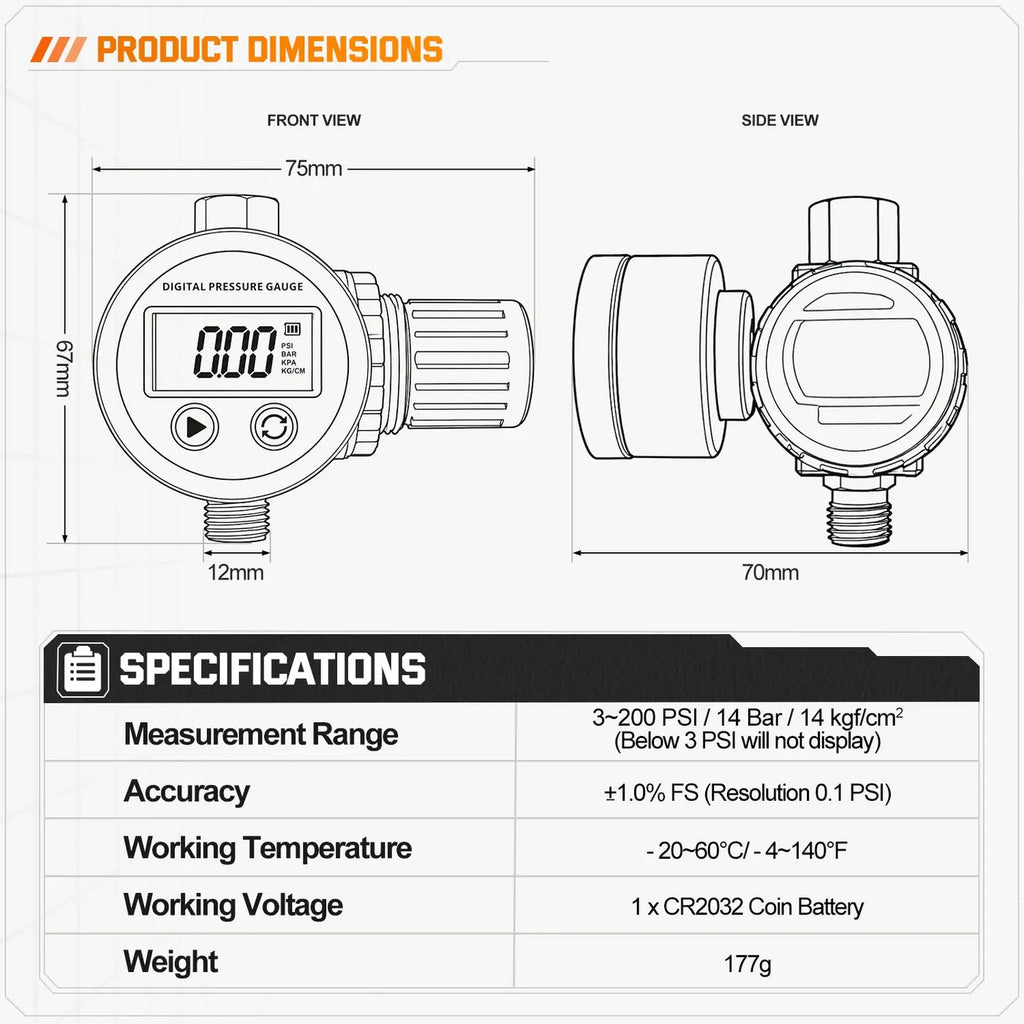

⏱️ FAST SPECS
- Pressure Stability System: Premium true-diaphragm mechanism designed to actively eliminate downstream pressure drops.
- Pressure Range: High-precision LCD readout measuring from 3 to 200 PSI with ±1% full-scale accuracy.
- Measuring Units: Single-button toggle switches between 4 unit modes: PSI, Bar, MPA, and KGF/CM².

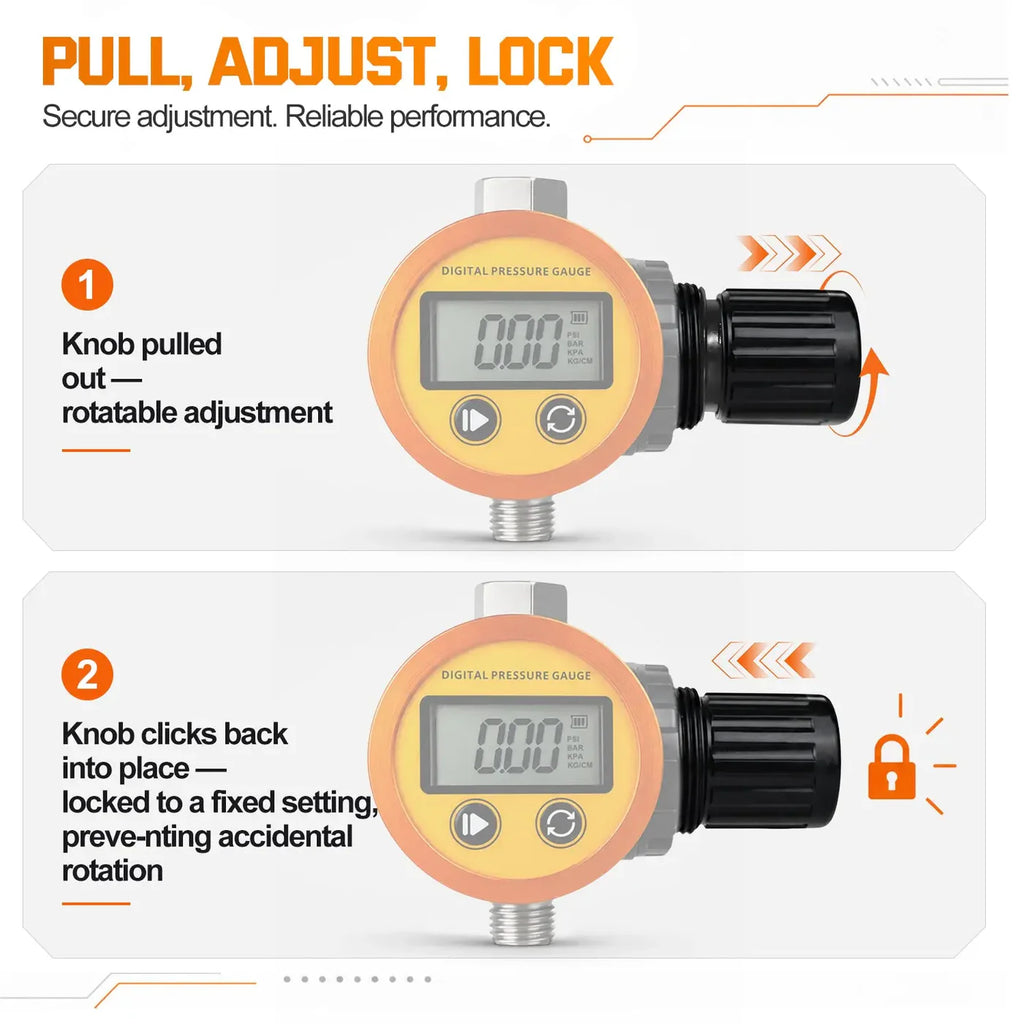

- Adjustment Lock: Features a heavy-duty pull, rotate, and push-to-lock black regulator knob to prevent accidental setting drift.

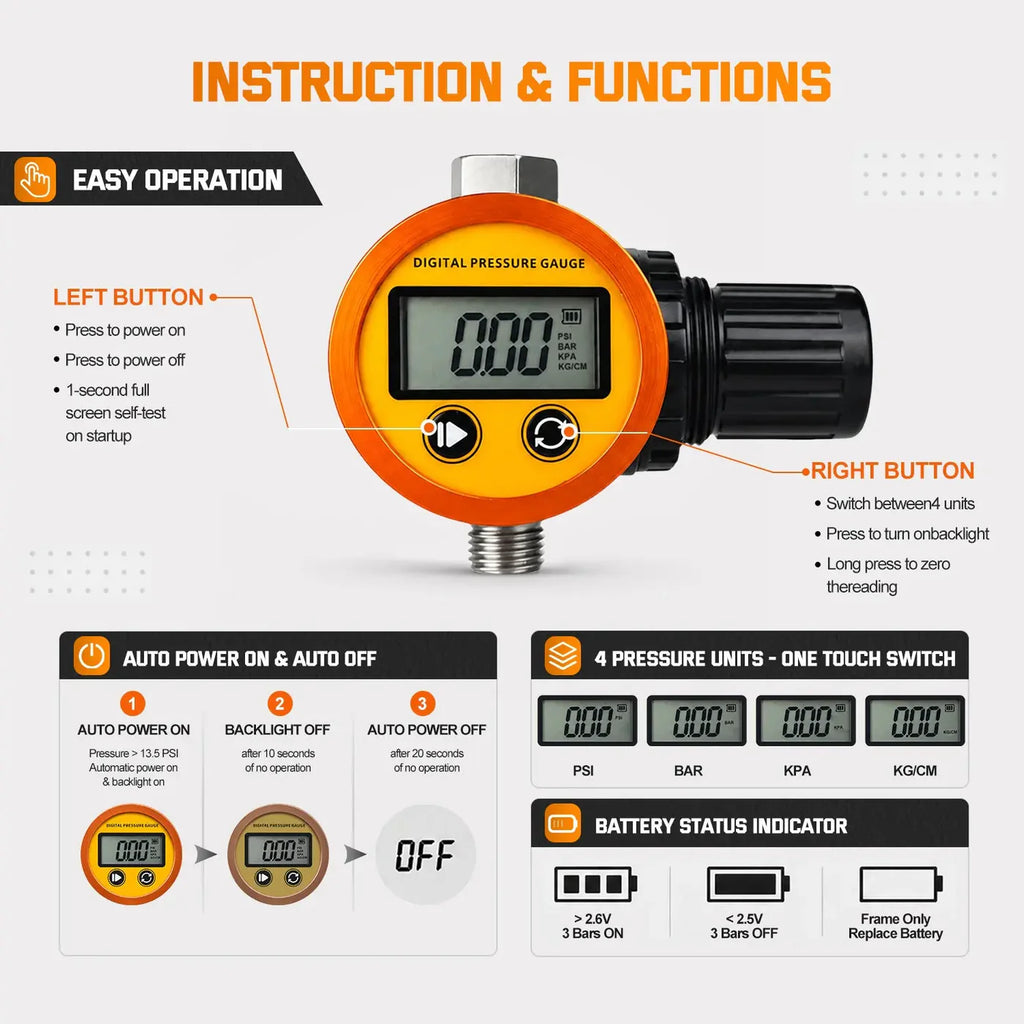

- Smart Power Activation: Smart display auto-illuminates once airflow crosses 13.5 PSI. It powers down automatically via an eco-shutoff timer.
- Thread Fitting: Universal G 1/4" NPT threads to mount straight onto standard automotive spray gun handles and air fittings.
- Power Source: Operates on a single, easily accessible CR2032 button battery.
🔥 WHY IT WORKS
- Zero Pressure Drops: The responsive diaphragm design constantly counteracts supply tank drop-offs, keeping your output pressure completely flat even when air consumption spikes.
- Flawless Metallic Finishes: Preventing mid-coat pressure fluctuations stops paint particles from shift-mottling, striping, or creating localized variations in flake orientation.
- Rugged All-Metal Core: Built from heavily anodized aircraft-grade aluminum alloy to withstand continuous workshop impacts and rigorous line pressures up to 150 PSI.
- Fine-Tuned Calibration: Includes a simple push-and-hold electronic sensor zero-out function to maintain long-term digital reading perfection.
🔍 WHEN TO USE THE PDG-02
- When your workshop compressor lines experience frequent pressure wave surges or severe temperature-induced flow drops.
- On high-end multi-panel automotive paint finishes where keeping a strictly identical material transfer rate across the entire vehicle is crucial.
- If you want a bold, high-contrast digital gauge face that remains readable in low-light spray booths.
