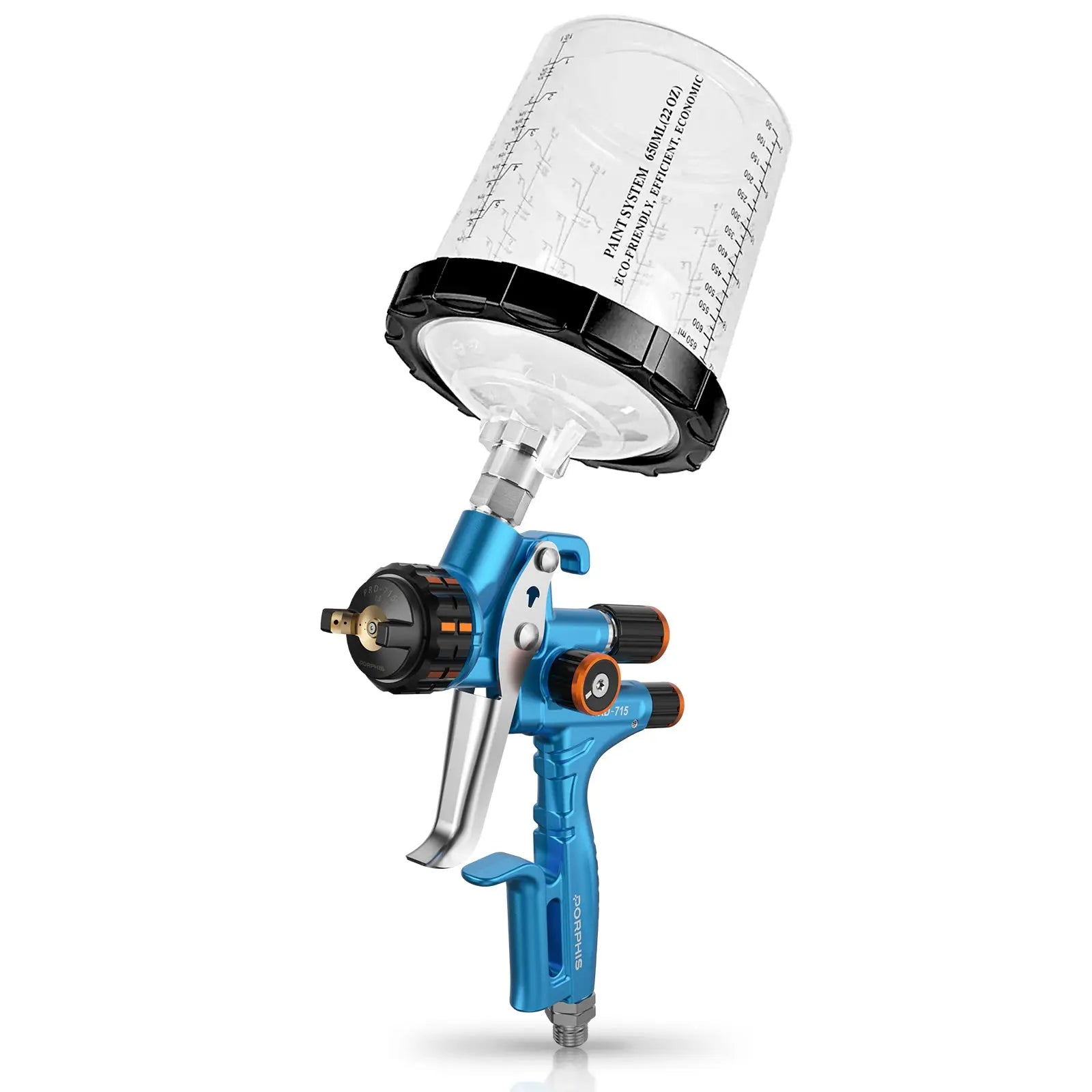

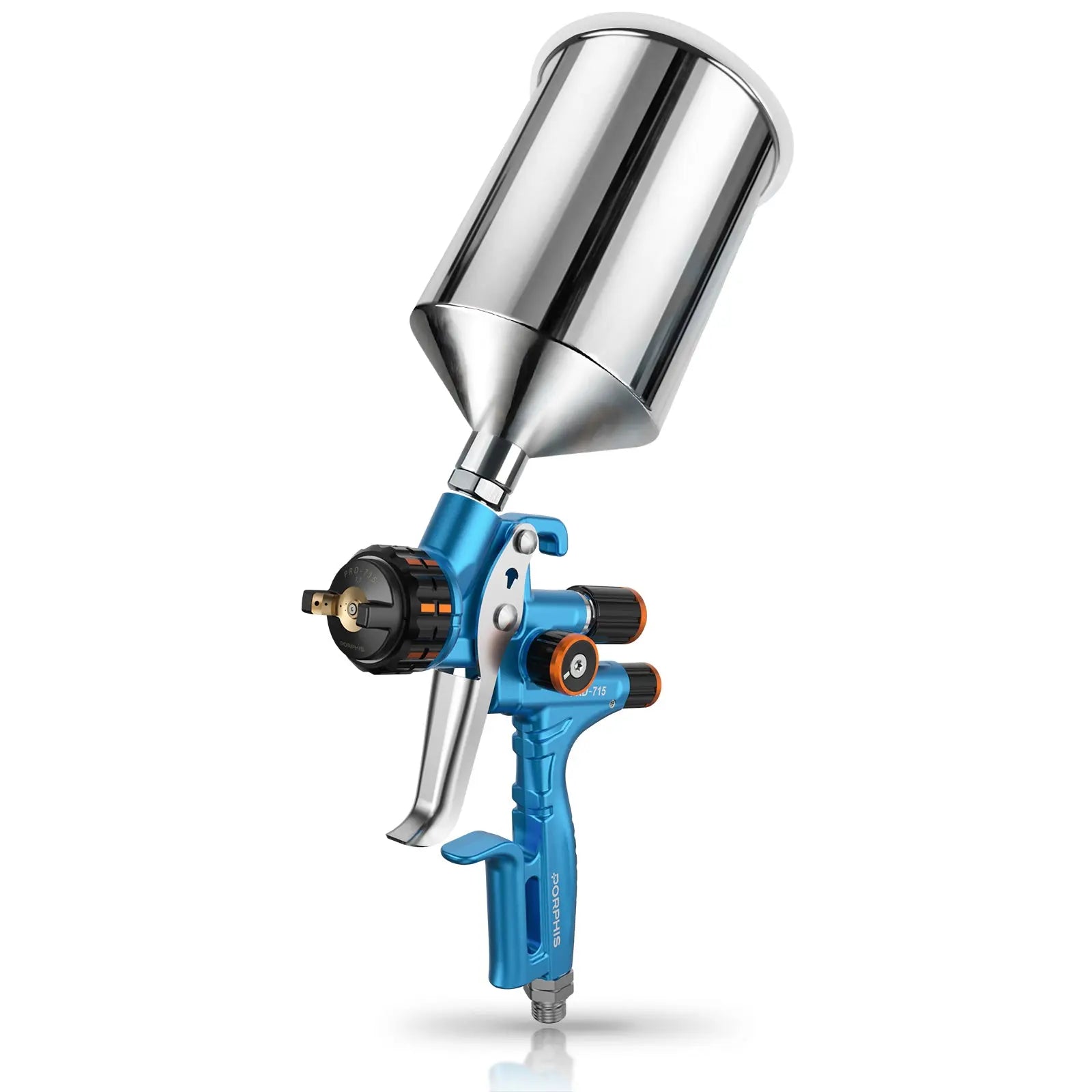

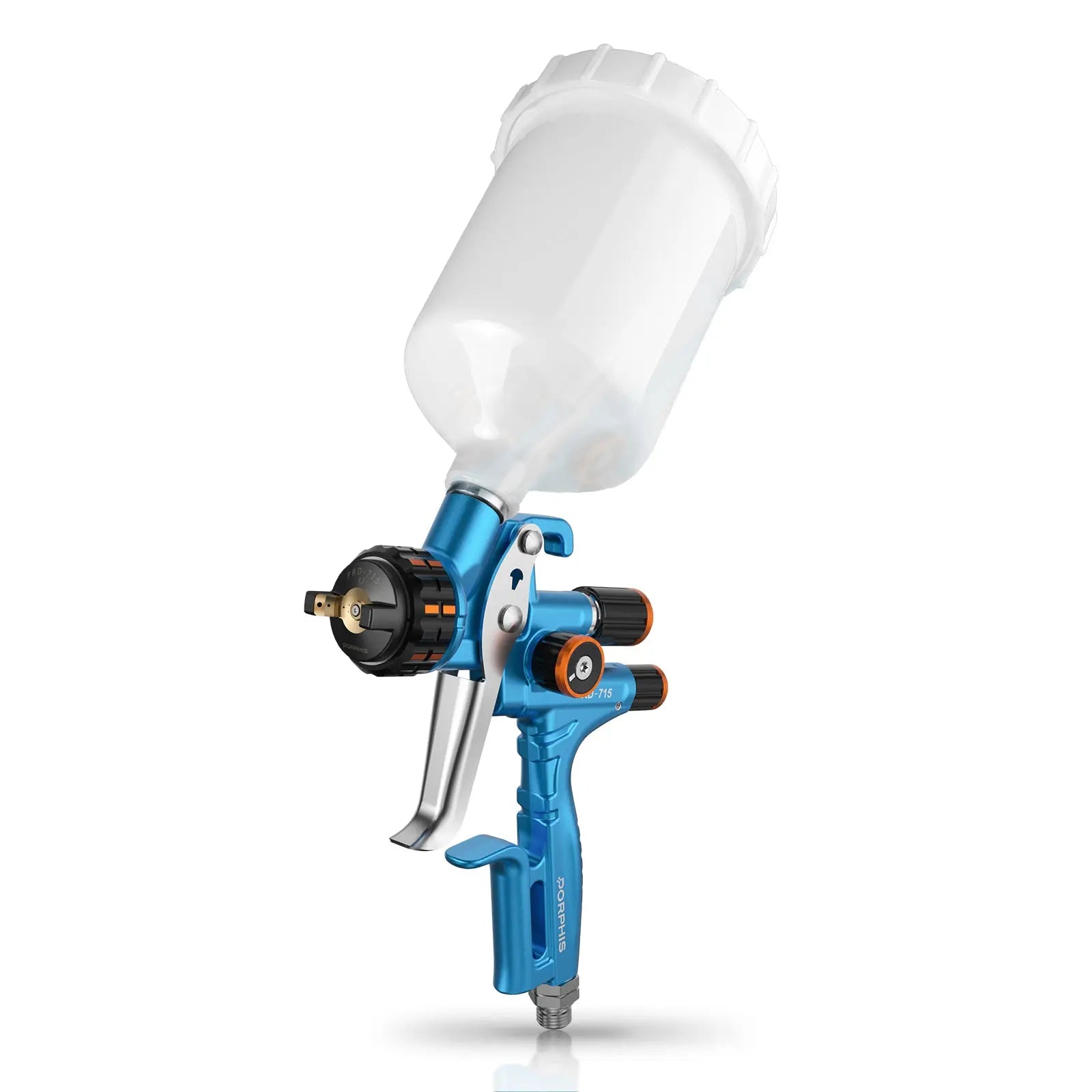

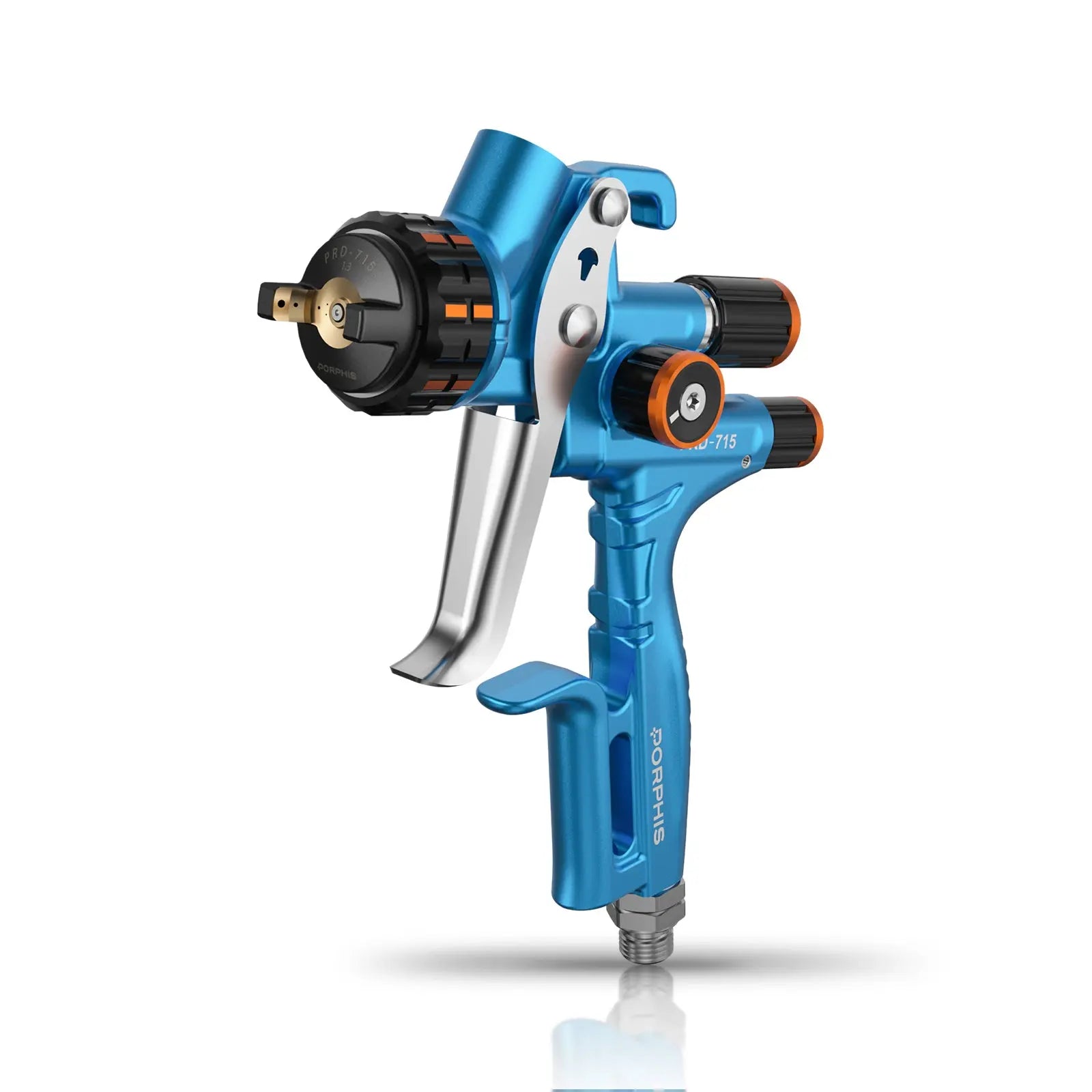

🛠️ PORPHIS PRD-715 Middle Pressure Spray Gun (1.3mm)
PAINT CUP/ADAPTER NOT INCLUDED
Quick Summary: Professional full-size automotive spray gun engineered for world-class topcoat finishing. Operating on refined Middle Pressure (MP) technology, it is tuned with a 1.3mm fluid path to deliver ultra-fine atomization and rapid film build for premium basecoats, clear coats, and single-stage paints.
⏱️ FAST SPECS
- Nozzle: 1.3mm precision-matched stainless steel needle and fluid tip.
- Tech: MP (Middle Pressure) high-efficiency atomization system.
- PSI: 22 – 29 PSI (1.5 – 2.0 Bar) optimal operating pressure.
- Air: 9.5 CFM (270 L/min) air volume requirement.
- Pattern: 11" to 13" ultra-wide, uniform fan profile.
- Weight: 0.46 kg (1.01 lbs) bare gun body.
- Inlet: G 1/4 air connection thread.
🔥 WHY IT WORKS
- Mirror-Like Clears: The 1.3mm nozzle layout is optimized to slice through high-solid clear coats, laying them flat with zero orange peel.
- Flawless Metallic Layout: Evenly distributes metallic and pearl flakes across the fan pattern to prevent tiger striping, blotching, or shadowing.
- High Transfer Efficiency: Maximizes the volume of paint adhering directly to the vehicle panel while drastically cutting down on bounce-back overspray and material waste.
- Forged Endurance: Features a precision forged aluminum gun body with a scratch-resistant anodized coating built to withstand busy collision shop workflows.
- Solvent Defense: Upgraded with high-grade industrial PTFE seals that completely resist chemical breakdown from aggressive solvent or waterborne paints.
📦 WHAT’S IN THE BOX
-
PORPHIS PRD-715 Spray Gun (1.3mm)
- G 1/4 Air Inlet Swivel Fitting & Material Filter Mesh
- Multi-Function Disassembly Adjustment Wrench
- Cleaning Brush & Maintenance Tool Kit
🔍 TARGET APPLICATIONS
- High-end automotive collision repair, complete topcoat resprays, and precision panel blending.
- Applying premium high-solid clear coats, custom pearl coats, and micro-metallic basecoats.
- Luxury woodworking, high-gloss piano furniture finishing, and marine topcoat spraying.
