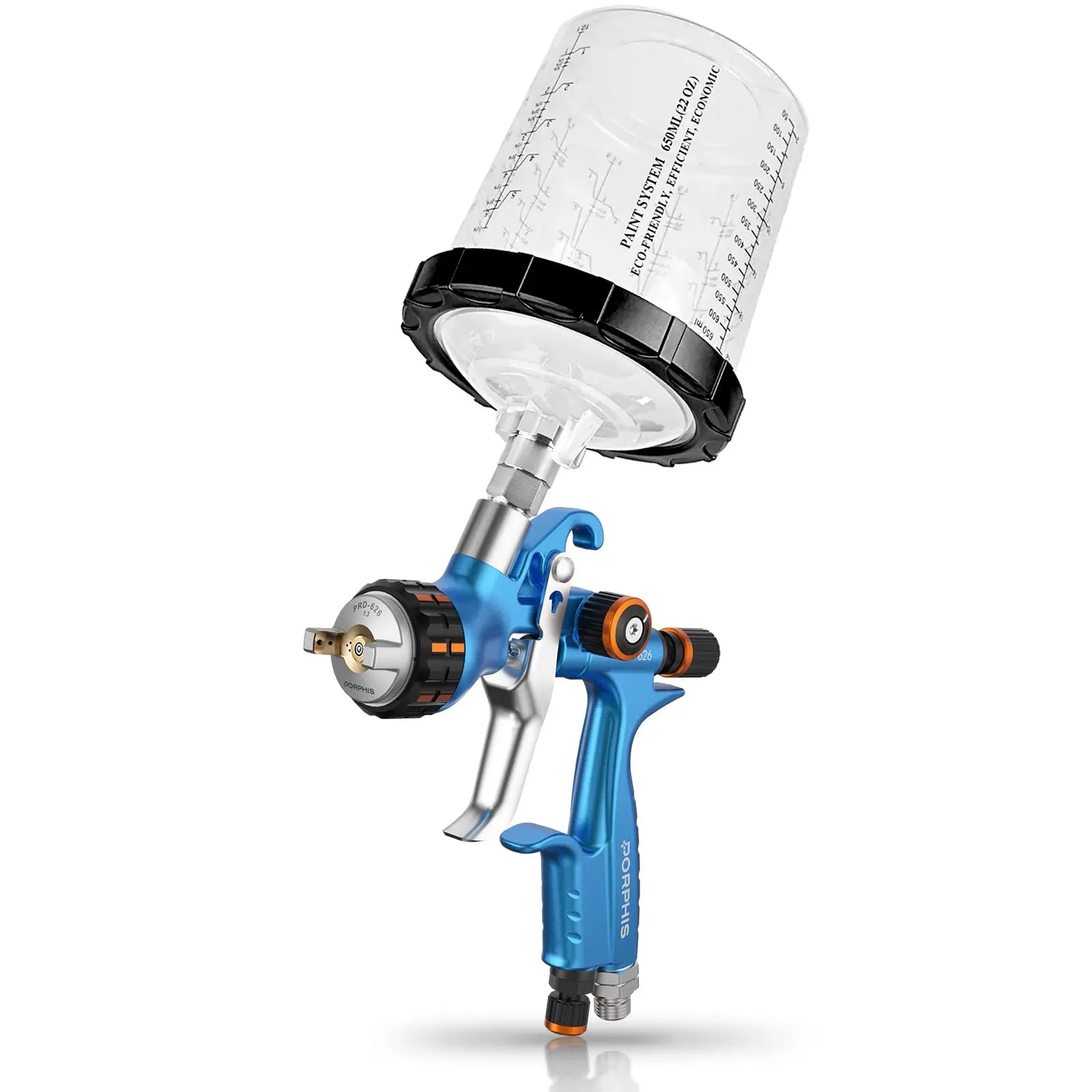

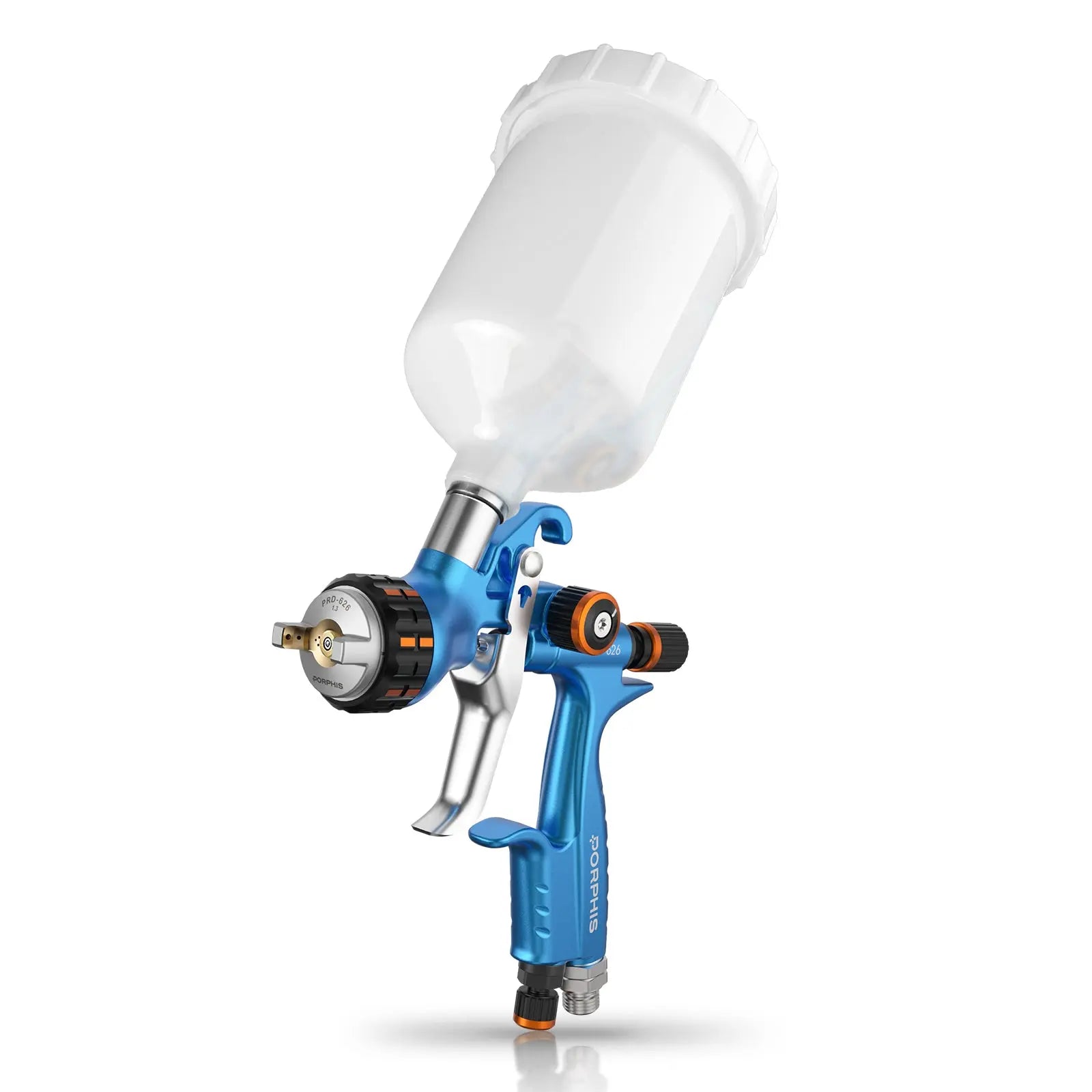

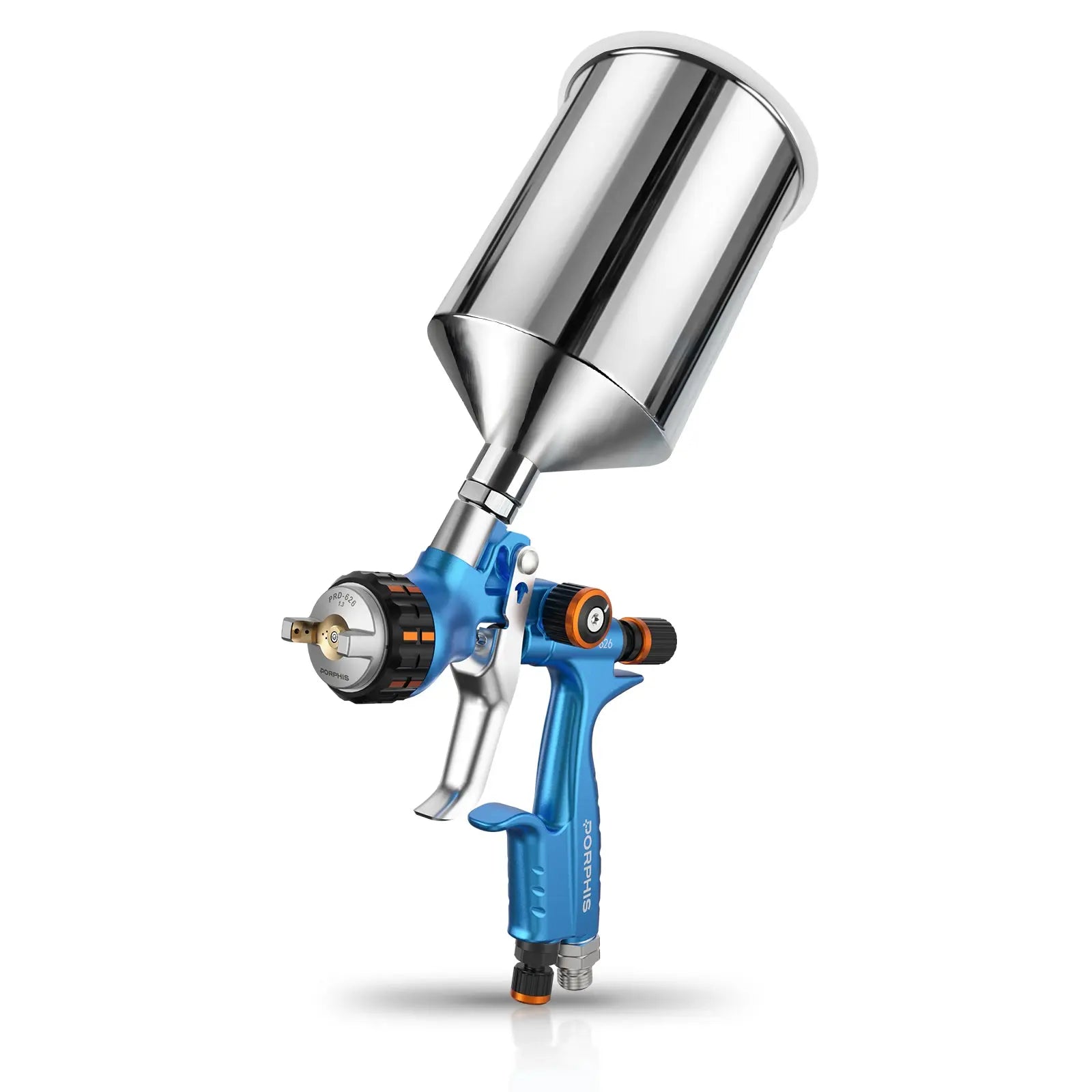

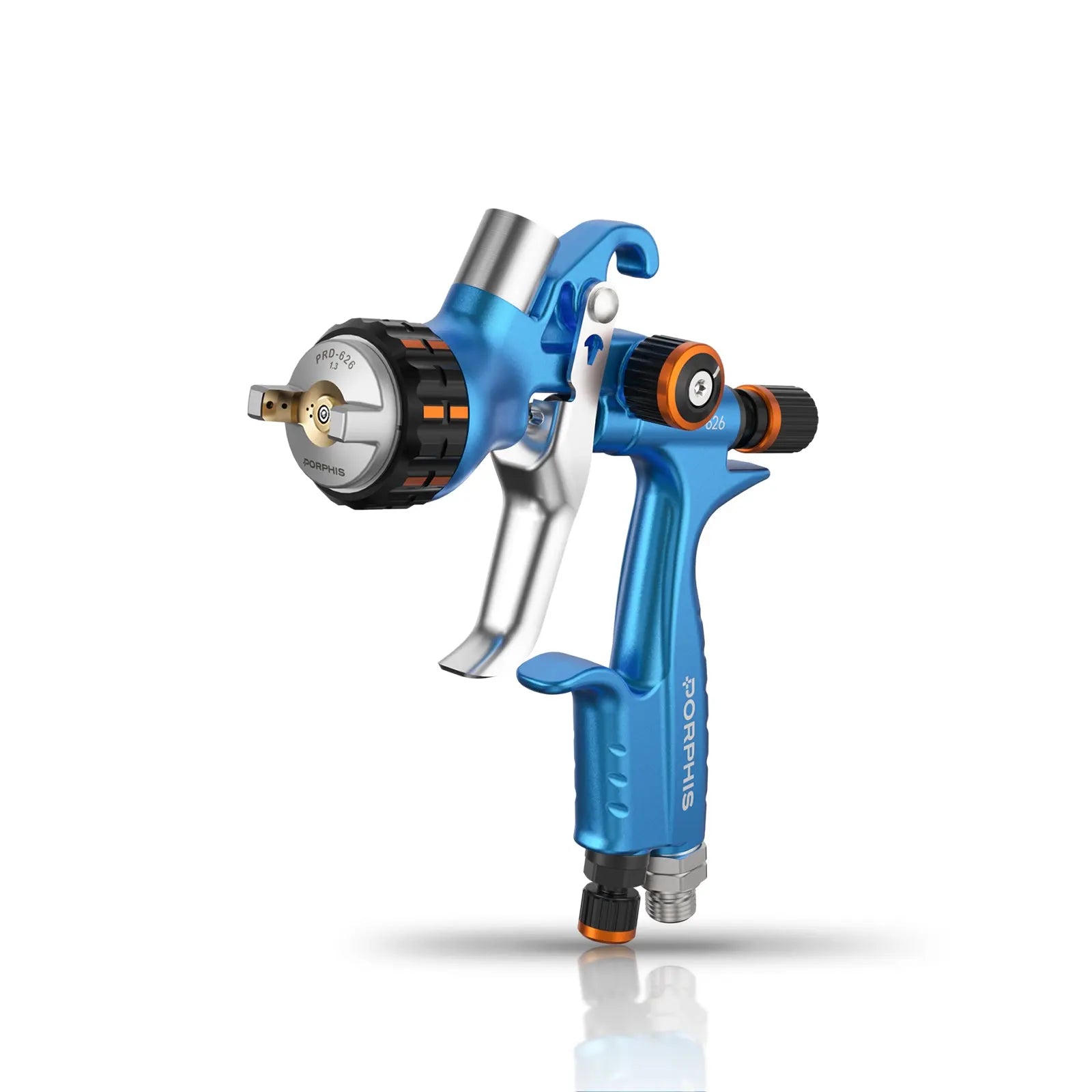

🔫 Porphis PRD-626 HVLP Spray Gun – 1.3mm Fluid Tip
PAINT CUP/ADAPTER NOT INCLUDED
Quick Summary: Professional industrial-grade High Volume Low Pressure (HVLP) spray gun specifically engineered for high-precision automotive basecoats, clearcoats, and premium finishes. Featuring a 1.3mm split nozzle design and a patented tool-free teardown configuration, it maximizes paint utilization, lowers energy demands, and guarantees mirror-like atomization.
⏱️ SPECIFICATIONS FAST SPECS
- Nozzle Size: 1.3mm precision split nozzle.
- Technology: True HVLP High-Flow, Low-Pressure.
- Operating Pressure: 1.6–2.0 Bar (23–29 PSI).
- Air Consumption: 430 L/min (15.2 CFM).
- Fluid Delivery: 190 ml/min.
- Spray Pattern Width: 260–290 mm (approx. 10"–11.4").
- Optimal Spray Distance: 170–200 mm (approx. 7"–8").
- Fluid Channel Thread: Male M16 x 1.5 (PPS/Disposable cup compatible).
🎨 Aerodynamic Splitting & Low-Viscosity Masters
The PRD-626 is refined using advanced computational aerodynamics to achieve ultra-fine particle breakdown, remaining perfectly stable even at standard paint viscosities of 18.
- Precision Split Nozzle: Intricately shapes the core fluid stream, ensuring identical droplet sizes across the top, center, and bottom sections of the fan pattern to prevent tiger striping.
- High Transfer, Low Waste: Drastically cuts down on costly overspray bounce-back, promoting eco-friendly, sustainable booth cycles and reducing paint room emissions.
- All-Weather Material Optimization: Entire internal fluid path, needle, fluid inlet joints, and nozzles are carved from premium anti-corrosion stainless steel (SUS) to handle both harsh solvent or delicate waterborne systems.
🪛 Patented Mechanical Seals & Tool-Free Upgrades
Engineered around user comfort and minimal down-time maintenance, the PRD-626 utilizes modern manufacturing patents.
- 60-Second Tool-Free Disassembly: Quick-release thread engineering allows the air cap, nozzle assembly, and needle to be completely stripped down without reaching for wrenches, accelerating color-change cycles.
- Integrated Air-Valve Structure: A patented, unified internal air channel design eliminates common air leaks, drastically increasing hand comfort and overall maneuverability.
- Self-Adjusting Needle Packing: A patented tensioning spring mechanism inside the needle packing nut actively conforms to wear, completely eliminating fluid packing lockups and reducing routine maintenance schedules.
- Highly Versatile Air Platform: Through swappable inner components, the gun body easily transitions to work as an LVLP (Low Volume Low Pressure) air setup if shop compressor limits require it.
📋 Recommended Applications
The 1.3mm precision tip is universally balanced for topcoat finishes. It is highly recommended for:
- Premium automotive metallic basecoats, pearl finishes, and high-solid polyurethane clearcoats.
- Low-to-medium viscosity industrial wood lacquers, wood stains, and architectural topcoats.
- High-precision spray tasks where strict material thickness control is required.
